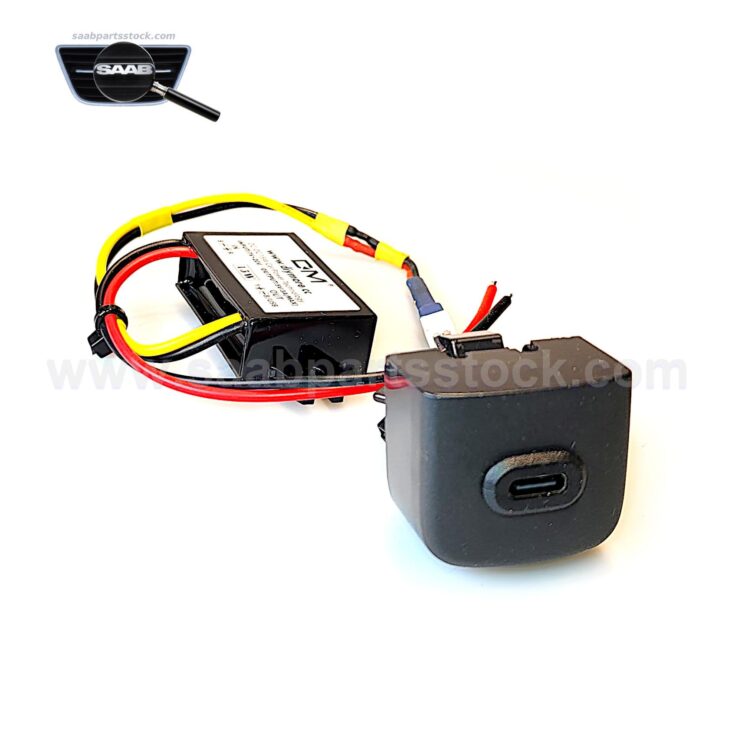

SAAB 9-5OG M1998-2010
Compatibility:
All devices that require charging via a USB-C connector.
Functions:
This is not a fast charger.
It can be installed on all SAAB 9-5OG models up to the model year 2010, directly in the dashboard by replacing the Blind Knob Button.
Technical data:
Material: Plastic housing and plastic socket
Input voltage: 7-20V
Output voltage: 5V / 3A (Max)
Output power: 15W
Total length of the device with wires: approx. 48 cm
Installation:
Basic knowledge of car electricity is required when installing the device.
1. Remove the radio, SID and ACC units.
2. Find a suitable place to attach / mount the adapter.
3. Find a suitable minus (-) mounting point and connect the BLACK wire to that point.
4. Find a suitable positive (+) wire that is powered in the ACC position of the ignition switch. The positive (+) RED wire entering into the adapter must be connected to this wire.
5. Connect the WHITE connector of the wires on the output side of the adapter to the WHITE connector of the wires coming out of the USB-C terminal.
6. Check the USB-C terminal for operation.
7. Push the USB-C terminal into the Blind Knob Button socket in the car dashboard.
8. Install the radio, SID and ACC units in place.
9. Done. Enjoy!
